FPC GEN5 v1 (16x2 array)
FlexiMap:FPC GEN5 v1

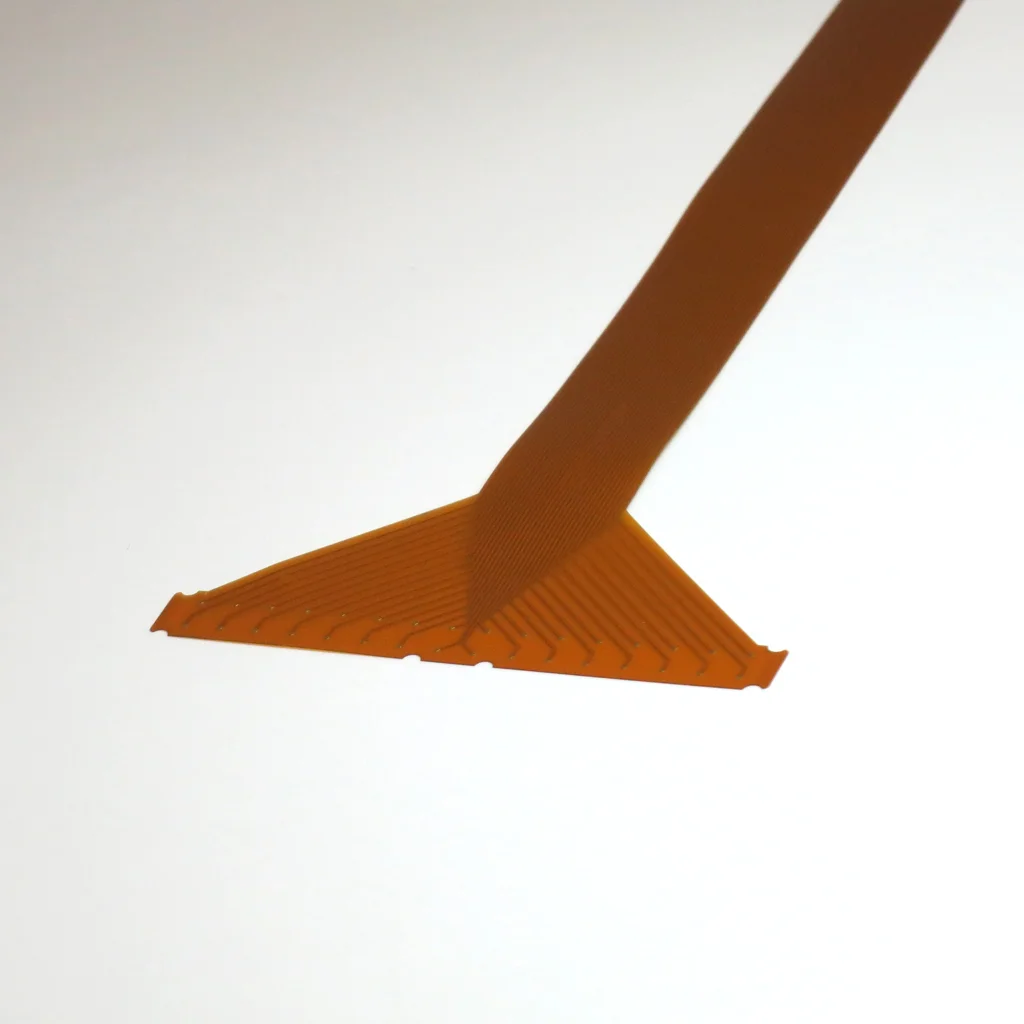

Flexible electrode arrays designed for in-vivo research. The FlexiMap FPC Gen5 v1 is the flagship electrode array designed for research use. It is now the academic benchmark for mapping gastrointestinal electrical activity. Over the past decade, the arrays have been applied in various research applications.
Technical specifications:
Channel Count: 16x2 electrodes/ array
Electrode: Gold/Ag/AgCl
Electrode Spacing: 4 mm
Electrode Head: 30 x 61mm
Array Length: 600 mm
Electrode Track Width: 0.2 mm
Features:
Alignment guides to allow different configurations to adjust to the shape of coverage.
Suitable for repeat use and sterilization with Sterrad (ASP) and V-Pro (STERIS).
Zero insertion force connectors.
Retail Price: 200 USD per electrode array (16x2 electrodes).
